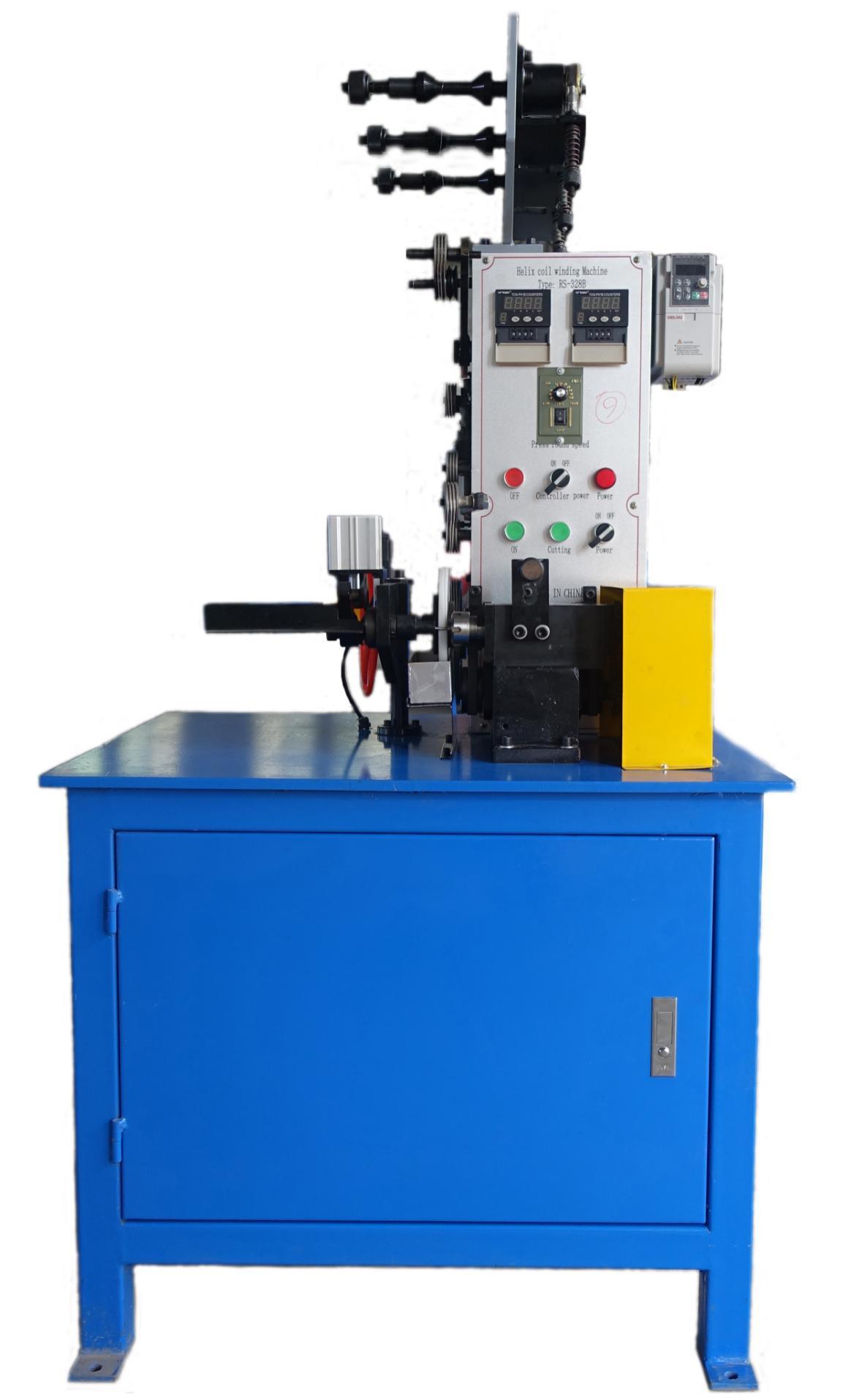

RS-328（PLC）Resistance Wire Winding machine

Main structure and performance
The RS-328 resistance wire winding machine installs the resistance wire drum on a set of wire drawing rack with a brake device, USES the wire wheel to guide the resistance wire to a set of precise rotating tooling, and USES a set of rotating wheel device with speed regulation to press the wire on the mandril for winding out the tight spiral coil. The machine can be wound; There are three kinds of single-wire, double-wire and 3-wire;

(Segment) PLC winding machine, different from ordinary winding machine: PLC winding machine is controlled by length composed of encoder and PLC touch screen; PLC can record and control the number of spiral coils, frequency converter is used to adjust the rotation speed of the control mandrel.

model

mandrel

wire diameter

productivity 8H

power

air supply

size

weight

RS-328 PLC

1.2-10mm

Φ0.13-Φ1.2mm

2500pcs
